3003 Aluminium Tread Phaj yog dab tsi?

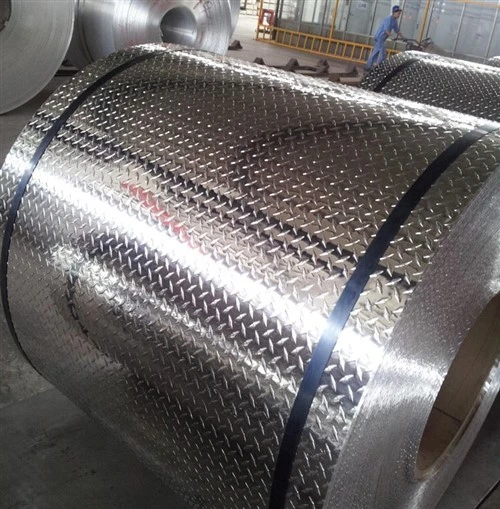

3003 txhuas tread phaj yog ib hom ntawv txhuas nrog cov qauv tsa ntawm qhov chaw, feem ntau yog 5-bar, pob zeb diamond, lossis checker designs. Nws belongs rau Al-Mn alloy series thiab muaj corrosion kuj zoo, nruab nrab lub zog, thiab zoo heev formability.
Muab piv nrog cov ntawv txhuas dawb, cov qauv tread zoo txhim kho kev ua haujlwm tsis zoo, ua rau nws haum rau hauv pem teb, txoj kev taug kev, thiab cov chaw tiv thaiv.
Cov yam ntxwv tseem ceeb ntawm 3003 Aluminium Checker Phaj
3003 tread phaj yog dav siv vim qhov zoo hauv qab no:
- Zoo corrosion kuj, haum rau huab cua los yog sab nraum zoov ib puag ncig
- Lub teeb yuag tab sis muaj zog txaus rau kev siv cov qauv siv
- Anti-slip nto tsim rau kev nyab xeeb daim ntaub ntawv
- Yooj yim rau txiav, khoov, thiab vuam
- Tus nqi -zoo piv nrog cov qib siab dua alloy
Tshuaj muaj pes tsawg leeg ntawm 3003 Aluminium
| Element | Cov ntsiab lus (%) |
|---|---|
| Al | Tshuav |
| Mn | 1.0 – 1.5 |
| Cu | 0.05 – 0.20 |
| Fe | Tsawg dua los yog sib npaug li 0.7 |
| Si | Tsawg dua lossis sib npaug li 0.6 |
| Zn | Tsawg dua los yog sib npaug li 0.1 |
Mechanical Properties ntawm 3003 Aluminium
| Kub | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) |
|---|---|---|---|
| H14 | 140 – 180 | Ntau dua lossis sib npaug li 115 | Ntau dua lossis sib npaug li 5 |
| H22 | 120 – 160 | Ntau dua lossis sib npaug li 95 | Ntau dua lossis sib npaug li 8 |
| H24 | 140 – 180 | Ntau dua lossis sib npaug li 115 | Ntau dua lossis sib npaug 6 |
3003 H22 thiab 3003 H24 feem ntau yog siv rau tread phaj vim lawv sib npaug zog thiab formability.
Standard Size thiab Specifications ntawm 3003 Aluminium Tread Plate
| Yam khoom | Specification |
|---|---|
| Alloy | 3003 Aluminium |
| Kub | H14 / H22 / H24 |
| Thickness | 1.0mm-6.0 hli |
| Dav | 1000mm / 1220mm / 1500mm |
| Ntev | 2000mm / 2440mm / Customized |
| Hom Hom | 5 Bar / Pob zeb diamond / 3 Bar |
| Nto | Mill tiav / Embossed |
| Txuj | ASTM B209 / EN 485 / GB / T 3880 |
| Daim ntawv thov | Flooring / Tsheb txaj / Stairs / Marine / Kho kom zoo nkauj |
| Lub sij hawm xa tuaj | 10-25 hnub nyob ntawm kev txiav txim |
| Ntim | Ntoo pallet / Hlau pallet / Export txheem ntim |
Hom 3003 Aluminium Tread Plate Patterns
5 Bar Aluminium Tread Phaj
Feem ntau siv hom nrog zoo heev tiv thaiv-slip kev ua tau zoo. Haum rau industrial flooring thiab tsheb pem teb.
Pob zeb diamond Aluminium phaj
Muab ob qho tib si kho kom zoo nkauj thiab ua haujlwm zoo. Feem ntau siv rau phab ntsa panels thiab toolboxes.
3003 aluminium tread phaj puas tuaj yeem ua kom tawv?
Tsis zoo li 6000 series (xws li 6061), 3003 txhuas tsis tuaj yeem hardened los ntawm kev kho cua sov. Txawm li cas los xij, nws lub zog thiab hardness tuaj yeem txhim kho tau zoo los ntawm cov txheej txheem ua haujlwm txias (xws li dov), uas ua rau muaj kev kub ntxhov xws li H14, H22, lossis H24 (feem ntau sau tias H114 rau embossed tread phaj).
Puas yog 3003 aluminium tread phaj ua rau tawg thaum khoov?
Tsis yog . 3003 aluminium muaj kev ua haujlwm zoo thiab tsim tau. Nws tuaj yeem ua tau yooj yim khoov, stamped, lossis tsim yam tsis muaj kev tawg, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev tsim cov thawv ntim khoom, trailer fenders, thiab kev cai architectural panels. (Faj seeb: Ua tib zoo saib lub vojvoog dabtsi yog khoov thiab npau taws; H14 / H114 khoov yooj yim dua li cov npau taws nyuaj).
Puas yog 3003 txhuas ua rau xeb?
3003 yog dav paub tias yog "xeb- pov thawj aluminium" (anti- xeb aluminium alloy). Nws ua tau zoo tshwj xeeb hauv qhov chaw ntub dej thiab sab nraum zoov thiab muaj kev tiv thaiv corrosion zoo dua li cov hlau tsis tu ncua. Nws yog qhov zoo heev rau atmospheric corrosion, ua rau nws zoo meej rau cov flooring thiab tsheb txaj.
Dab tsi yog qhov tseem ceeb ntawm 3003 aluminium tread phaj?
- Kev thauj mus los:Tsheb txaj, trailer pem teb, loading ramps, thiab kauj ruam daim hlau.
- Industrial:Tsis yog- cov plag tsev hauv tsev, cov chaw ua si, cov ntaiv treads, thiab elevator pem teb.
- Kev lag luam & Kho kom zoo nkauj:Cov cuab yeej kev cai thawv, phab ntsa thaiv vaj huam sib luag, thiab cov khoom dai kom zoo nkauj.
3003 Aluminium Tread Phaj Nqe (raws li SMM Aluminium Nqe)
| Yam khoom | Kub | Thickness Ntau | Qauv | Nqe Basis |
|---|---|---|---|---|
| 3003 Aluminium Tread Phaj | H14 / H22 (H114) | 1.0-3.0 hli | Pob zeb diamond / 5-Bar | SMM Aluminium Nqe + Tus Nqi Ua Haujlwm (USD 350-600 / Tuj) |
| 3003 Aluminium Tread Phaj | H14 / H22 (H114) | 3.0-6.0 hli | Pob zeb diamond / 5-Bar | SMM Aluminium Nqe + Tus Nqi Ua Haujlwm (USD 300-550 / Tuj) |
| 3003 Aluminium Tread Phaj | O / H112 | 6.0-10.0 hli | Pob zeb diamond / 5-Bar | SMM Aluminium Nqe + Tus Nqi Ua Haujlwm (USD 280-500 / Tuj) |
Nco tseg:
Tus nqi kawg=SMM Aluminium Ingot Nqe + Tus Nqi Fabrication + Freight (FOB/CIF)
Tus nqi ua haujlwm txawv nyob ntawm qhov tuab, hom qauv, kom muaj nuj nqis, thiab qhov xav tau ntawm qhov chaw
Kev txiav txim ntau thiab ntev - daim ntawv cog lus tuaj yeem tau txais tus nqi sib tw ntau dua
Tiv tauj peb kom tau txais cov lus hais tiag - lub sijhawm raws li tus nqi SMM tshiab
Lub sij hawm xa tuaj
| Trade Term | FOB / CIF / CFR |
| Chaw thau khoom chaw nres nkoj | Shanghai / Tianjin / Qingdao |
| Them Nyiaj | T/T, L/C |
| Lub sij hawm xa tuaj | 7-15 hnub rau kev txiav txim tsis tu ncua |
| Ntim | Standard Export Seaworthy Ntoo Pallets |
| Daim ntawv pov thawj | EN 10204 3.1 MTC Muaj |
GNEE tuav cov khoom lag luam loj ntawm cov khoom siv txhuas, feem ntau cov khoom lag luam tsis tu ncua ntawm 3003, 5052, thiab 6061 tread phaj. Peb muab ntau cov qauv saum npoo nrog rau ib qho bar, 3-bar, 5-bar, thiab pob zeb diamond duab.
Peb kuj tau nruab nrog CNC shearing tshuab, laser txiav, thiab plasma txiav, ua rau peb muab kev txiav - rau - qhov loj me raws li koj cov duab kos. Peb tuaj yeem txiav cov nplooj ntawv txhuas rau cov neeg siv khoom- qhov ntev qhia tau sai thiab raug.
Txhua pawg ntawm 3003 txhuas tread daim hlau tuaj nrog MTC (Mill Test Certificate) cov ntaub ntawv qhia, nthuav dav cov tshuaj muaj pes tsawg leeg thiab cov khoom siv kho tshuab.
Rau kev ntim khoom thiab kev thauj mus los, tag nrho cov ntawv txhuas txhuas yog ruaj khov nrog cov ntawv tsis muaj dej, sib cuam tshuam nrog cov ntawv siv tes ua (rau kev tiv thaiv saum npoo yam tsis muaj cov nplaum seem ntawm cov qauv), thiab ruaj khov rau ntawm cov ntoo pallets ruaj khov. Lub ntim yog qhov muaj zog heev los tiv thaiv kev ya raws lossis lub cev puas tsuaj thaum lub sijhawm thauj khoom hiav txwv. Cov ntawv ntshiab yog affixed rau sab nrauv kom yooj yim txheeb xyuas cov ntsiab lus ntawm cov khoom.
